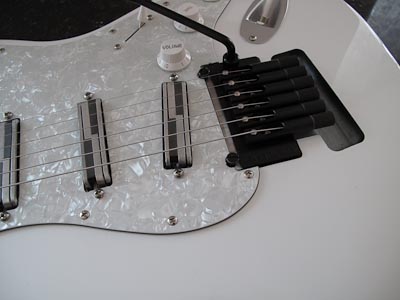

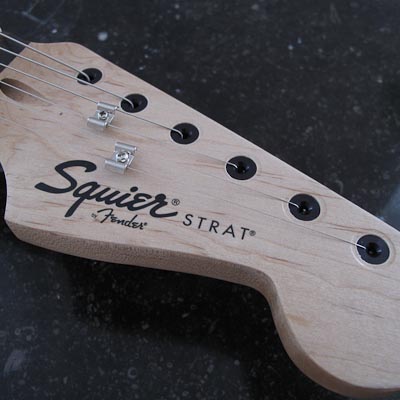

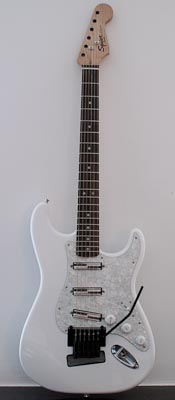

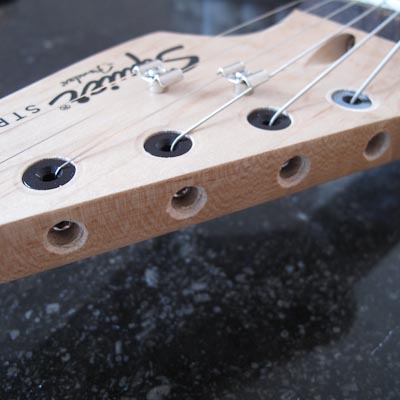

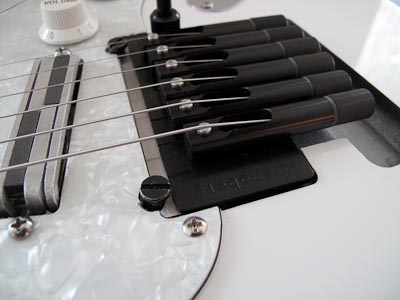

Here are some pictures of the finished product. The work was no more complicated than any Floyd-Rose upgrade and the looks are, if you ask me, quite interesting.
I have not been able to weigh a standard Squier Strat, but the weight of this guitar (including tremolo arm) is 2,950 grams (6.5 lbs) in case you want to compare with your own.
