#65 Wiring

While I’m at it with schematics, here is the one for #65, which is a little more interesting. It has a Lundgren humbucker in the bridge, and Bare Knuckle single coil in the neck, and switches through combinations of the different humbucker coils in combination with the single coil using a 5-way switch.

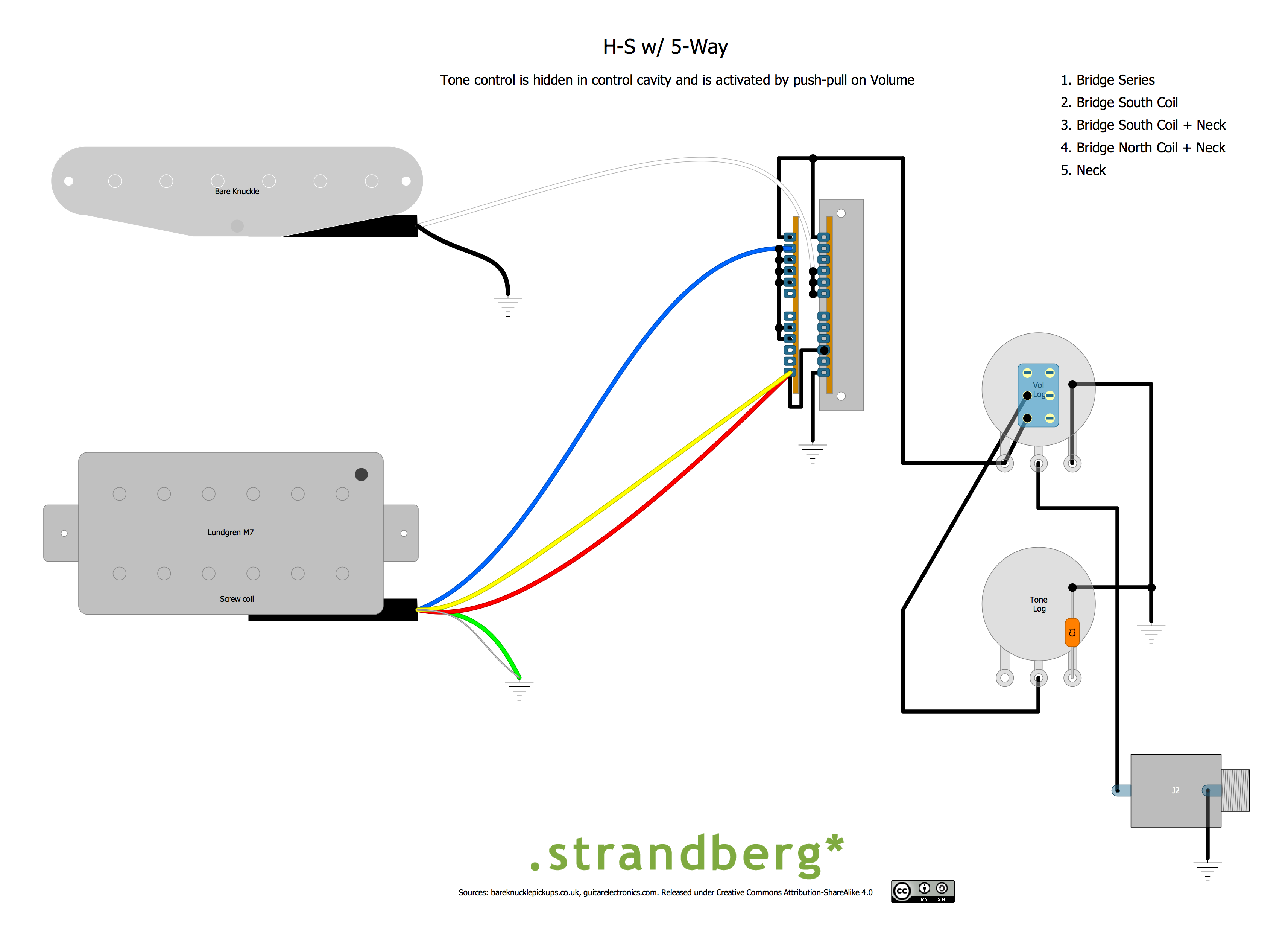

#65 Schematic


And the DIYLC file. Again, this may be modified and shared under Creative Commons license.
